前几天听一个朋友提到这个netmap,看了它的介绍和设计,确实是个好东西。其设计思想与业界不谋而合——因为为了提高性能,几个性能瓶颈放在那里,解决方法自然也是类似的。

netmap的出现,它既实现了一个高性能的网络I/O框架,代码量又不算大,非常适合学习和研究。

推荐视频

150行代码拉开协议栈实现的篇章|udp协议、netmap原理、mmap原理、柔性数组、协议栈实现

从netmap到dpdk,从硬件到协议栈,4个维度让网络体系构建起来

学习地址:C/C++Linux服务器开发/后台架构师【零声教育】-学习视频教程-腾讯课堂

netmap简单介绍

1. 利用mmap,将网卡驱动的ring内存空间映射到用户空间。这样用户态可以直接访问到原始的数据包,避免了内核和用户态的两次拷贝;——前两天我还想写这么一个东西呢。

2. 利用预先分配的固定大小的buff来保存数据包。这样减少了内核原有的动态分配;——对于网络设备来说,固定大小的内存池比buddy要有效的多。之前我跟Bean_lee也提过此事呵。

3. 批量处理数据包。这样就减少了系统调用;

更具体的内容,大家直接去netmap的官方网站上看吧,写得很详细。虽然英文,大家还是耐着性子好好看看,收获良多。

netmap的源码分析

从上面netmap的简单介绍中可以看到,netmap不可避免的要修改网卡驱动。不过这个修改量很小。

驱动的修改

下面我以e1000.c为例来分析。由于netmap最早是在FreeBSD上实现的,为了在linux达到最小的修改,使用了大量的宏,这给代码的阅读带来了一些困难。

e1000_probe的修改 俺不是写驱动的。。。e1000_probe里面很多代码看不明白,但是不影响我们对netmap的分析。通过netmap的patch,知道是在e1000完成一系列硬件初始化以后,并注册成功,这时调用e1000_netmap_attach

@@-1175,6+1183,10@@staticint__devinit e1000_probe(structif(err)gotoerr_register; +ifdefDEV_NETMAP+ e1000_netmap_attach(adapter); +endif/* DEV_NETMAP */+/* print bus type/speed/width info */e_info(probe,"(PCI%s:%dMHz:%d-bit) %pM\n", ((hw->bus_type == e1000_bus_type_pcix) ?"-X":""),

下面是e1000_netmap_attach的代码

01.staticvoid02.e1000_netmap_attach(structSOFTC_T*adapter)03.{04.structnetmap_adapterna;05.bzero(&na, sizeof(na));06.07.na.ifp = adapter->netdev;08.na.separate_locks =0;09.na.num_tx_desc = adapter->tx_ring[0].count;10.na.num_rx_desc = adapter->rx_ring[0].count;11.na.nm_register = e1000_netmap_reg;12.na.nm_txsync = e1000_netmap_txsync;13.na.nm_rxsync = e1000_netmap_rxsync;14.netmap_attach(&na,1);15.}

SOFTC_T是一个宏定义,对于e1000,实际上是e1000_adapter,即e1000网卡驱动对应的private data。 下面是struct netmap_adapter的定义

/* * This struct extends the struct adapter (or * equivalent) device descriptor. It contains all fields needed to * support netmap operation. */structnetmap_adapter{/* * On linux we do not have a good way to tell if an interface * is netmap-capable. So we use the following trick: * NA(ifp) points here, and the first entry (which hopefully * always exists and is at least 32 bits) contains a magic * value which we can use to detect that the interface is good. */uint32_tmagic;uint32_tna_flags;/* future place for IFCAP_NETMAP */intrefcount;/* number of user-space descriptors using this interface, which is equal to the number of struct netmap_if objs in the mapped region. *//* * The selwakeup in the interrupt thread can use per-ring * and/or global wait queues. We track how many clients * of each type we have so we can optimize the drivers, * and especially avoid huge contention on the locks. */intna_single;/* threads attached to a single hw queue */intna_multi;/* threads attached to multiple hw queues */intseparate_locks;/* set if the interface suports different locks for rx, tx and core. */u_int num_rx_rings;/* number of adapter receive rings */u_int num_tx_rings;/* number of adapter transmit rings */u_int num_tx_desc;/* number of descriptor in each queue */u_int num_rx_desc;/* tx_rings and rx_rings are private but allocated * as a contiguous chunk of memory. Each array has * N+1 entries, for the adapter queues and for the host queue. */structnetmap_kring*tx_rings;/* array of TX rings. */structnetmap_kring*rx_rings;/* array of RX rings. */NM_SELINFO_T tx_si, rx_si;/* global wait queues *//* copy of if_qflush and if_transmit pointers, to intercept * packets from the network stack when netmap is active. */int(*if_transmit)(struct ifnet *, struct mbuf *);/* references to the ifnet and device routines, used by * the generic netmap functions. */structifnet*ifp;/* adapter is ifp->if_softc */NM_LOCK_T core_lock;/* used if no device lock available */int(*nm_register)(struct ifnet *,intonoff);void(*nm_lock)(struct ifnet *,intwhat, u_int ringid);int(*nm_txsync)(struct ifnet *, u_int ring,intlock);int(*nm_rxsync)(struct ifnet *, u_int ring,intlock);intbdg_port;ifdeflinuxstructnet_device_opsnm_ndo;intif_refcount;// XXX additions for bridgeendif/* linux */};

从struct netmap_adapter可以看出,netmap的注释是相当详细。所以后面,我不再列出netmap的结构体定义,大家可以自己查看,免得满篇全是代码。————这样的注释,有几个公司能够做到?

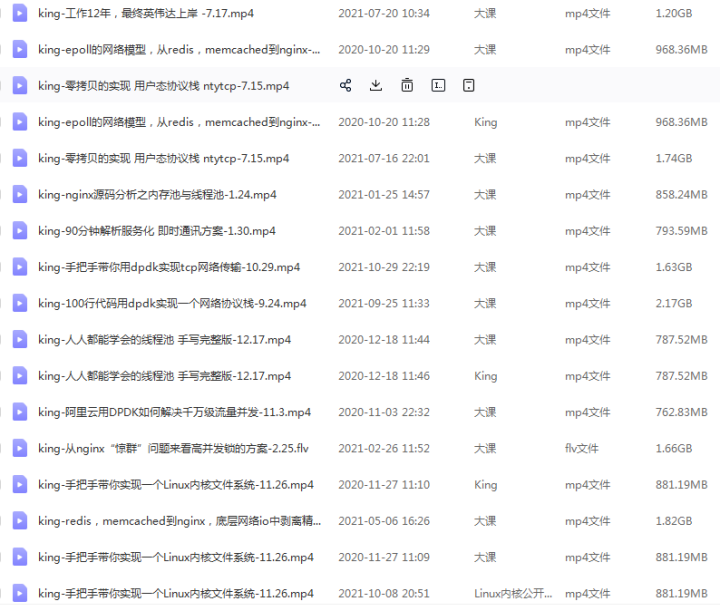

【文章福利】需要C/C++ Linux服务器架构师学习资料加群812855908(资料包括C/C++,Linux,golang技术,内核,Nginx,ZeroMQ,MySQL,Redis,fastdfs,MongoDB,ZK,流媒体,CDN,P2P,K8S,Docker,TCP/IP,协程,DPDK,ffmpeg,大厂面试题 等)

e1000_netmap_attach完成简单的初始化工作以后,调用netmap_attach执行真正的attach工作。前者是完成与具体驱动相关的attach工作或者说是准备工作,而后者则是真正的attach。

int netmap_attach(structnetmap_adapter*na, int num_queues) { int n, size; void *buf;/* 这里ifnet又是一个宏,linux下ifnet实际上是net_device */structifnet*ifp = na->ifp;if(ifp == NULL) { D("ifp not set, giving up");returnEINVAL; }/* clear other fields ? */na->refcount =0;/* 初始化接收和发送ring */if(na->num_tx_rings ==0) na->num_tx_rings = num_queues; na->num_rx_rings = num_queues;/* on each direction we have N+1 resources * 0..n-1 are the hardware rings * n is the ring attached to the stack. *//* 这么详细的注释。。。还用得着我说吗? 0到n-1的ring是用于转发的ring,而n是本机协议栈的队列 n+1为哨兵位置 */n = na->num_rx_rings + na->num_tx_rings +2;/* netmap_adapter与其ring统一申请内存 */size = sizeof(*na) + n * sizeof(structnetmap_kring);/* 这里的malloc,实际上为kmalloc。 这里还有一个小trick。M_DEVBUF,M_NOWAIT和M_ZERO都是FreeBSD的定义。那么在linux下怎么使用呢? 我开始以为其被定义为linux对应的flag,如GFP_ATOMIC和__GFP_ZERO,于是grep了M_NOWAIT,也没有找到任何的宏定义。 正在奇怪的时候,想到一种情况。让我们看看malloc的宏定义/* use volatile to fix a probable compiler error on 2.6.25 */define malloc(_size, type, flags) \ ({ volatile int _v = _size; kmalloc(_v, GFP_ATOMIC | __GFP_ZERO); }) 这里type和flags完全没有任何引用的地方。所以在linux下,上面的M_DEVBUG实际上直接被忽略掉了。 */buf = malloc(size, M_DEVBUF, M_NOWAIT | M_ZERO);if(buf) {/* Linux下重用了struct net_device->ax25_ptr,用其保存buf的地址 */WNA(ifp) = buf;/* 初始化tx_rings和rx_rings,tx_rings和rx_rings之间用了一个额外的ring分隔,目前不知道这个ring是哨兵呢,还是本主机的ring */na->tx_rings = (void *)((char*)buf + sizeof(*na)); na->rx_rings = na->tx_rings + na->num_tx_rings +1;/* 复制netmap_device并设置对应的标志位,用于表示其为netmap_device*/bcopy(na, buf, sizeof(*na)); NETMAP_SET_CAPABLE(ifp); na = buf;/* Core lock initialized here. Others are initialized after * netmap_if_new. */mtx_init(&na->core_lock,"netmap core lock", MTX_NETWORK_LOCK, MTX_DEF);if(na->nm_lock == NULL) { ND("using default locks for %s", ifp->if_xname); na->nm_lock = netmap_lock_wrapper; } }/* 这几行Linux才用的上的代码,是为linux网卡的驱动框架准备的。未来有用处 */ifdef linuxif(ifp->netdev_ops) { D("netdev_ops %p", ifp->netdev_ops);/* prepare a clone of the netdev ops */na->nm_ndo = *ifp->netdev_ops; } na->nm_ndo.ndo_start_xmit = linux_netmap_start; endif D("%s for %s", buf ?"ok":"failed", ifp->if_xname);return(buf ?0: ENOMEM); }

完成了netmap_attach,e1000的probe函数e1000_probe即执行完毕。

前面e1000_probe的分析,按照Linux驱动框架,接下来就该e1000_open。netmap并没有对e1000_open进行任何修改,而是改动了e1000_configure,其会被e1000_open及e1000_up调用。

e1000_configure的修改

按照惯例,还是先看diff文件

@@-393,6+397,10@@staticvoide1000_configure(structe1000 e1000_configure_tx(adapter); e1000_setup_rctl(adapter); e1000_configure_rx(adapter); +ifdefDEV_NETMAP+if(e1000_netmap_init_buffers(adapter)) +return; +endif/* DEV_NETMAP *//* call E1000_DESC_UNUSED which always leaves * at least 1 descriptor unused to make sure * next_to_use != next_to_clean */

从diff文件可以看出,netmap替代了原有的e1000申请ring buffer的代码。如果e1000_netmap_init_buffers成功返回,e1000_configure就直接退出了。

接下来进入e1000_netmap_init_buffers:

/* * Make the tx and rx rings point to the netmap buffers. */staticint e1000_netmap_init_buffers(structSOFTC_T*adapter) {structe1000_hw*hw = &adapter->hw;structifnet*ifp = adapter->netdev;structnetmap_adapter* na = NA(ifp);structnetmap_slot* slot;structe1000_tx_ring* txr = &adapter->tx_ring[0]; unsigned int i, r, si; uint64_t paddr;/* 还记得前面的netmap_attach吗? 所谓的attach,即申请了netmap_adapter,并将net_device->ax25_ptr保存了指针,并设置了NETMAP_SET_CAPABLE。 因此这里做一个sanity check,以免影响正常的网卡驱动 */if(!na || !(na->ifp->if_capenable & IFCAP_NETMAP))return0;/* e1000_no_rx_alloc如其名,为一个不该调用的函数,只输出一行错误日志 */adapter->alloc_rx_buf = e1000_no_rx_alloc;for(r =0; r < na->num_rx_rings; r++) {structe1000_rx_ring*rxr;/* 初始化对应的netmap对应的ring */slot = netmap_reset(na, NR_RX, r,0);if(!slot) { D("strange, null netmap ring %d", r);return0; }/* 得到e1000对应的ring */rxr = &adapter->rx_ring[r];for(i =0; i < rxr->count; i++) {// XXX the skb check and cleanup can go awaystructe1000_buffer*bi = &rxr->buffer_info[i];/* 将当前的buff索引转换为netmap的buff索引 */si = netmap_idx_n2k(&na->rx_rings[r], i);/* 获得netmap的buff的物理地址 */PNMB(slot + si, &paddr);if(bi->skb) D("rx buf %d was set", i); bi->skb = NULL;// netmap_load_map(...)/* 现在网卡的这个buffer已经指向了netmap申请的buff地址了 */E1000_RX_DESC(*rxr, i)->buffer_addr = htole64(paddr); } rxr->next_to_use =0;/* 下面这几行代码没看明白怎么回事。 有明白的同学指点一下,多谢。 *//* preserve buffers already made available to clients */i = rxr->count -1- na->rx_rings[0].nr_hwavail;if(i <0) i += rxr->count; D("i now is %d", i); wmb();/* Force memory writes to complete */writel(i, hw->hw_addr + rxr->rdt); }/* 初始化发送ring,与接收类似. 区别在于没有考虑发送多队列。难道是因为e1000只可能是接收多队列,发送只可能是一个队列? 这个问题不影响后面的代码阅读。咱们可以暂时将其假设为e1000只有一个发送队列 *//* now initialize the tx ring(s) */slot = netmap_reset(na, NR_TX,0,0);for(i =0; i < na->num_tx_desc; i++) { si = netmap_idx_n2k(&na->tx_rings[0], i); PNMB(slot + si, &paddr);// netmap_load_map(...)E1000_TX_DESC(*txr, i)->buffer_addr = htole64(paddr); }return1; }e1000cleanrx_irq的修改@@-3952,6+3973,11@@staticboole1000_clean_rx_irq(structe1boolcleaned =false;unsignedinttotal_rx_bytes=0, total_rx_packets=0; +ifdefDEV_NETMAP+ ND("calling netmap_rx_irq"); +if(netmap_rx_irq(netdev,0, work_done)) +return1;/* seems to be ignored */+endif/* DEV_NETMAP */i = rx_ring->next_to_clean; rx_desc = E1000_RX_DESC(*rx_ring, i); buffer_info = &rx_ring->buffer_info[i];

进入netmap_rx_irq, int netmaprxirq(struct ifnet *ifp, int q, int *workdone) { struct netmapadapter *na; struct netmap_kring *r; NMSELINFOT *main_wq;

if(!(ifp->if_capenable & IFCAP_NETMAP))return0; na = NA(ifp);/* 尽管函数名为rx,但实际上这个函数服务于rx和tx两种情况,用work_done做区分。 */if(work_done) {/* RX path */r = na->rx_rings + q; r->nr_kflags |= NKR_PENDINTR; main_wq = (na->num_rx_rings >1) ? &na->rx_si :NULL; }else{/* tx path */r = na->tx_rings + q; main_wq = (na->num_tx_rings >1) ? &na->tx_si :NULL; work_done = &q;/* dummy */}/* na->separate_locks只在ixgbe和bridge中会被设置为1。 根据下面的代码,这个separate_locks表示多队列时,是每个队列使用一个锁。——这样可以提高性能 其余的代码基本相同。都是唤醒等待数据的进程。 */if(na->separate_locks) { mtx_lock(&r->q_lock); selwakeuppri(&r->si, PI_NET); mtx_unlock(&r->q_lock);if(main_wq) { mtx_lock(&na->core_lock); selwakeuppri(main_wq, PI_NET); mtx_unlock(&na->core_lock); } }else{ mtx_lock(&na->core_lock); selwakeuppri(&r->si, PI_NET);if(main_wq) selwakeuppri(main_wq, PI_NET); mtx_unlock(&na->core_lock); } *work_done =1;/* do not fire napi again */return1; }

发送部分的修改与接收类似,就不重复了。

开始进入netmap的核心代码。一切从init开始。。。

netmap_init

Linux环境下,netmap使用动态模块加载,由linuxnetmapinit调用netmap_init。

staticintnetmap_init(void){interror;/* 申请netmap的各个内存池,包括netmap_if,netmap_ring,netmap_buf以及内存池的管理结构 */error = netmap_memory_init();if(error !=0) {printf("netmap: unable to initialize the memory allocator.\n");return(error); }printf("netmap: loaded module with %d Mbytes\n", (int)(nm_mem->nm_totalsize >>20));/* 在Linux上,调用的实际上是misc_register。make_dev为一共宏定义。 创建一个名为netmap的misc设备,作为userspace和kernel的接口 */netmap_dev = make_dev(&netmap_cdevsw,0, UID_ROOT, GID_WHEEL,0660,"netmap");ifdefNM_BRIDGE{inti;for(i =0; i < NM_BRIDGES; i++) mtx_init(&nm_bridges[i].bdg_lock,"bdg lock","bdg_lock", MTX_DEF); }endifreturn(error); }netmapmemoryinit

netmap目前有两套内存分配管理代码,一个是netmapmem1.c,另一个是netmapmem2.c。默认使用的是后者。

staticint netmap_memory_init(void) { struct netmap_obj_pool *p;/* 先申请netmap内存管理结构 */nm_mem = malloc(sizeof(struct netmap_mem_d), M_NETMAP, M_WAITOK | M_ZERO);if(nm_mem ==NULL)gotoclean;/* netmap_if的内存池 */p = netmap_new_obj_allocator("netmap_if", NETMAP_IF_MAX_NUM, NETMAP_IF_MAX_SIZE);if(p ==NULL)gotoclean; nm_mem->nm_if_pool = p;/* netmap_ring的内存池 */p = netmap_new_obj_allocator("netmap_ring", NETMAP_RING_MAX_NUM, NETMAP_RING_MAX_SIZE);if(p ==NULL)gotoclean; nm_mem->nm_ring_pool = p;/* netmap_buf的内存池 */p = netmap_new_obj_allocator("netmap_buf", NETMAP_BUF_MAX_NUM, NETMAP_BUF_SIZE);if(p ==NULL)gotoclean;/* 对于netmap_buf,为了以后的使用方便,将其中的一些信息保存到其它明确的全局变量中 */netmap_total_buffers = p->objtotal; netmap_buffer_lut = p->lut; nm_mem->nm_buf_pool = p; netmap_buffer_base = p->lut[0].vaddr; mtx_init(&nm_mem->nm_mtx,"netmap memory allocator lock",NULL, MTX_DEF); nm_mem->nm_totalsize = nm_mem->nm_if_pool->_memtotal + nm_mem->nm_ring_pool->_memtotal + nm_mem->nm_buf_pool->_memtotal; D("Have %d KB for interfaces, %d KB for rings and %d MB for buffers", nm_mem->nm_if_pool->_memtotal >>10, nm_mem->nm_ring_pool->_memtotal >>10, nm_mem->nm_buf_pool->_memtotal >>20);return0; clean:if(nm_mem) { netmap_destroy_obj_allocator(nm_mem->nm_ring_pool); netmap_destroy_obj_allocator(nm_mem->nm_if_pool); free(nm_mem, M_NETMAP); }returnENOMEM; }netmapnewobj_allocator

进入内存池的申请函数——这是netmap中比较长的函数了。

staticstruct netmap_obj_pool * netmap_new_obj_allocator(constchar *name, u_int objtotal, u_int objsize) { struct netmap_obj_pool *p; int i, n; u_int clustsize;/* the cluster size, multiple of page size */u_int clustentries;/* how many objects per entry */define MAX_CLUSTSIZE (1<<17)define LINE_ROUND 64/* 这个检查应该是netmap不允许申请过于大的结构的内存池 */if(objsize >= MAX_CLUSTSIZE) {/* we could do it but there is no point */D("unsupported allocation for %d bytes", objsize);returnNULL; }/* 让obj的size取整到64字节。为啥呢? 因为CPU的cache line大小一般是64字节。所以object的size如果和cache line对齐,可以获得更好的性能。 关于cache line对性能的影响,可以看一下我以前写得一篇博文《多核编程:选择合适的结构体大小,提高多核并发性能》 *//* make sure objsize is a multiple of LINE_ROUND */i = (objsize & (LINE_ROUND -1));if(i) { D("XXX aligning object by %d bytes", LINE_ROUND - i); objsize += LINE_ROUND - i; }/* * Compute number of objects using a brute-force approach: * given a max cluster size, * we try to fill it with objects keeping track of the * wasted space to the next page boundary. *//* 这里有一个概念:cluster。 暂时没有找到相关的文档介绍这里的cluster的概念。 这里,我只能凭借下面的代码来说一下我的理解: cluster是一组内存池分配对象object的集合。为什么要有这么一个集合呢? 众所周知,Linux的内存管理是基于页的。而object的大小或小于一个页,或大于一个页。如果基于object本身进行内存分配,会造成内存的浪费。 所以这里引入了cluster的概念,它占用一个或多个连续页。这些页的内存大小或为object大小的整数倍,或者是浪费空间最小。 下面的方法是一个比较激进的计算cluster的方法,它尽可能的追求上面的目标直到cluster的占用的大小超出设定的最大值——MAX_CLUSTSIZE。 */for(clustentries =0, i =1;; i++) { u_int delta, used = i * objsize;/* 不能一味的增长cluster,最大占用空间为MAX_CLUSTSIZE */if(used > MAX_CLUSTSIZE)break;/* 最后页面占用的空间 */delta = used % PAGE_SIZE;if(delta ==0) {// exact solutionclustentries = i;break; }/* 这次利用页面空间的效率比上次的高,所以更新当前的clustentries,即cluster的个数*/if(delta > ( (clustentries*objsize) % PAGE_SIZE) ) clustentries = i; }// D("XXX --- ouch, delta %d (bad for buffers)", delta);/* compute clustsize and round to the next page *//* 得到cluster的大小,并将其与PAGE SIZE对齐 */clustsize = clustentries * objsize; i = (clustsize & (PAGE_SIZE -1));if(i) clustsize += PAGE_SIZE - i; D("objsize %d clustsize %d objects %d", objsize, clustsize, clustentries);/* 申请内存池管理结构的内存 */p = malloc(sizeof(struct netmap_obj_pool), M_NETMAP, M_WAITOK | M_ZERO);if(p ==NULL) { D("Unable to create %s allocator", name);returnNULL; }/* * Allocate and initialize the lookup table. * * The number of clusters is n = ceil(objtotal/clustentries) * objtotal = n * clustentries *//* 初始化内存池管理结构 */strncpy(p->name, name, sizeof(p->name)); p->clustentries = clustentries; p->_clustsize = clustsize;/* 根据要设定的内存池object的数量,来调整cluster的个数 */n = (objtotal + clustentries -1) / clustentries; p->_numclusters = n;/* 这是真正的内存池中的object的数量,通常是比传入的参数objtotal要多 */p->objtotal = n * clustentries;/* 为什么0和1是reserved,暂时不明。搁置争议,留给后面解决吧。:) */p->objfree = p->objtotal -2;/* obj 0 and 1 are reserved */p->_objsize = objsize; p->_memtotal = p->_numclusters * p->_clustsize;/* 物理地址与虚拟地址对应的查询表 */p->lut = malloc(sizeof(struct lut_entry) * p->objtotal, M_NETMAP, M_WAITOK | M_ZERO);if(p->lut ==NULL) { D("Unable to create lookup table for %s allocator", name);gotoclean; }/* Allocate the bitmap *//* 申请内存池位图,用于表示那个object被分配了 */n = (p->objtotal +31) /32; p->bitmap = malloc(sizeof(uint32_t) * n, M_NETMAP, M_WAITOK | M_ZERO);if(p->bitmap ==NULL) { D("Unable to create bitmap (%d entries) for allocator %s", n, name);gotoclean; }/* * Allocate clusters, init pointers and bitmap */for(i =0; i < p->objtotal;) { int lim = i + clustentries; char *clust; clust = contigmalloc(clustsize, M_NETMAP, M_WAITOK | M_ZERO,0,-1UL, PAGE_SIZE,0);if(clust ==NULL) {/* * If we get here, there is a severe memory shortage, * so halve the allocated memory to reclaim some. */D("Unable to create cluster at %d for %s allocator", i, name); lim = i /2;for(; i >= lim; i--) { p->bitmap[ (i>>5) ] &= ~(1<< (i &31) );if(i % clustentries ==0&& p->lut[i].vaddr) contigfree(p->lut[i].vaddr, p->_clustsize, M_NETMAP); } p->objtotal = i; p->objfree = p->objtotal -2; p->_numclusters = i / clustentries; p->_memtotal = p->_numclusters * p->_clustsize;break; }/* 初始化位图即虚拟地址和物理地址插叙表 */for(; i < lim; i++, clust += objsize) {/* 1. bitmap是32位,所以i >> 5; 2. 为什么(i&31),也是这个原因;—— 这就是代码的健壮性。 */p->bitmap[ (i>>5) ] |= (1<< (i &31) ); p->lut[i].vaddr = clust; p->lut[i].paddr = vtophys(clust); } }/* 与前面一样,保留第0位和第1位。再次搁置争议。。。 */p->bitmap[0] = ~3;/* objs 0 and 1 is always busy */D("Pre-allocated %d clusters (%d/%dKB) for %s", p->_numclusters, p->_clustsize >>10, p->_memtotal >>10, name);returnp; clean: netmap_destroy_obj_allocator(p);returnNULL; }

netmapnewobj_allocator的分析结束。关于netmap的内存管理,依然按照事件的主线分析,而不是集中将一部分搞定。

接下来就要从netmap的使用,自上而下的学习分析一下netmap的代码了。

netmap的应用示例

netmap的网站上给出了一个简单的例子——说简单,其实也涵盖了netmap的框架的调用。

structnetmap_if*nifp;structnmreqreq; int i, len;char*buf; fd = open("/dev/netmap",0); strcpy(req.nr_name,"ix0");// register the interfaceioctl(fd, NIOCREG, &req);// offset of the structuremem = mmap(NULL, req.nr_memsize, PROT_READ|PROT_WRITE,0, fd,0); nifp = NETMAP_IF(mem, req.nr_offset);for(;;) {structpollfdx[1];structnetmap_ring*ring = NETMAP_RX_RING(nifp,0); x[0].fd = fd; x[0].events = POLLIN; poll(x,1,1000);for( ; ring->avail >0; ring->avail--) { i = ring->cur; buf = NETMAP_BUF(ring, i); use_data(buf, ring->slot[i].len); ring->cur = NETMAP_NEXT(ring, i); } }

咱们还是一路走来,走到哪看到哪。

open操作

这个其实跟netmap没有多大关系。记得前文中的netmap注册了一个misc设备netmap_cdevsw吗?

staticstructfile_operationsnetmap_fops= {.mmap = linux_netmap_mmap, LIN_IOCTL_NAME = linux_netmap_ioctl, .poll = linux_netmap_poll, .release = netmap_release, };staticstructmiscdevicenetmap_cdevsw= {/* same name as FreeBSD */MISC_DYNAMIC_MINOR,"netmap", &netmap_fops, };

netmapcdevsw为对应的设备结构体定义,netmapfops为对应的操作函数。这里面没有自定义的open函数,那么应该就使用linux内核默认的open——这个是我的推测,暂时不去查看linux代码了。

NIOCREG ioctl操作

ioctl就是内核的一个垃圾桶啊,什么都往里装,什么都能做。

netmap的ioctllonglinux_netmap_ioctl(struct file *file, u_int cmd, u_long data/* arg */){intret;structnmreqnmr;bzero(&nmr,sizeof(nmr));/* 从上面的例子和这里可以看出,struct nmreq就是netmap内核与用户空间的消息结构体。 两者的互动就靠它了。 */if(data && copy_from_user(&nmr, (void*)data,sizeof(nmr) ) !=0)return-EFAULT; ret = netmap_ioctl(NULL, cmd, (caddr_t)&nmr,0, (void*)file);if(data && copy_to_user((void*)data, &nmr,sizeof(nmr) ) !=0)return-EFAULT;return-ret; }

进入netmap_ioctl,真正的netmap的ioctl处理函数

staticint netmap_ioctl(structcdev*dev, u_long cmd, caddr_t data, int fflag,structthread*td) {structnetmap_priv_d*priv= NULL;structifnet*ifp;structnmreq*nmr = (structnmreq*) data;structnetmap_adapter*na; int error; u_int i, lim;structnetmap_if*nifp;/* 为了去除warning警告——没用的参数。 void应用的一个小技巧 */(void)dev;/* UNUSED */(void)fflag;/* UNUSED *//* Linux下这两个红都是空的 */CURVNET_SET(TD_TO_VNET(td));/* devfs_get_cdevpriv在linux下是一个宏定义。 得到struct file->private_data; 当private_data不为NULL时,返回0;为null时,返回ENOENT。 所以对于linux,后面的条件判断永远为假 */error = devfs_get_cdevpriv((void **)&priv);if(error != ENOENT && error !=0) { CURVNET_RESTORE();return(error); } error =0;/* Could be ENOENT *//* 又可见到高手代码健壮性的体现。 对于运行在kernel中的代码,一定要稳定!强制保证nmr->nr_name字符串长度的合法性 */nmr->nr_name[sizeof(nmr->nr_name) -1] =\0;/* truncate name */。。。。。。 。。。。。。

为了流程的清楚,对于netmap_ioctl的分析就到这里。依然按照之前的使用的流程走。

写到这里我发现netmap网站给的实例应该是老古董了。按照netmap当前的代码,上面的例子根本无法使用。不过木已成舟,大家凑合意会理解这个例子吧,还好流程没有太大的变化。

既然示例代码不可信了,那么就按照ioctl支持的命令顺序,来分析netmap吧。

NIOCGINFO

用于返回netmap的基本信息

caseNIOCGINFO:/* return capabilities etc *//* memsize is always valid *//* 如果是我写,我可能先去做后面的版本检查 netmap这样选择,应该是因为这些信息与版本无关。 */nmr->nr_memsize = nm_mem->nm_totalsize; nmr->nr_offset =0; nmr->nr_rx_rings = nmr->nr_tx_rings =0; nmr->nr_rx_slots = nmr->nr_tx_slots =0;if(nmr->nr_version != NETMAP_API) { D("API mismatch got %d have %d", nmr->nr_version, NETMAP_API); nmr->nr_version = NETMAP_API; error = EINVAL;break; }if(nmr->nr_name[0] ==\0)/* just get memory info */break;/* Linux下调用dev_get_by_name通过网卡名得到网卡struct net_device。 并且通过NETMAP_CAPABLE来检查netmap是否attach了这个net_device——忘记NETMAP_CAPABLE和attach的同学请自行查看前面几篇文章。 */error = get_ifp(nmr->nr_name, &ifp);/* get a refcount */if(error)break;/* 得到attach到网卡结构的netmap结构体 */na = NA(ifp);/* retrieve netmap_adapter *//* 得到ring的个数,以及每个ring有多少slot */nmr->nr_rx_rings = na->num_rx_rings; nmr->nr_tx_rings = na->num_tx_rings; nmr->nr_rx_slots = na->num_rx_desc; nmr->nr_tx_slots = na->num_tx_desc; nm_if_rele(ifp);/* return the refcount */break;NIOCREGIF

将特定的网卡设置为netmap模式

case NIOCREGIF:if(nmr->nr_version != NETMAP_API) { nmr->nr_version = NETMAP_API; error = EINVAL;break; }if(priv!= NULL) {/* thread already registered *//* 重新设置对哪个ring感兴趣,这个函数,留到后面说 */error = netmap_set_ringid(priv, nmr->nr_ringid);break; }/* 下面几行拿到netmap_device结构的代码,和NIOCGINFO case没什么区别 *//* find the interface and a reference */error = get_ifp(nmr->nr_name, &ifp);/* keep reference */if(error)break; na = NA(ifp);/* retrieve netmap adapter *//* * Allocate the private per-thread structure. * XXX perhaps we can use a blocking malloc ? */priv= malloc(sizeof(structnetmap_priv_d), M_DEVBUF, M_NOWAIT | M_ZERO);if(priv== NULL) { error = ENOMEM; nm_if_rele(ifp);/* return the refcount */break; }/* 这里循环等待net_device可用 */for(i =10; i >0; i--) { na->nm_lock(ifp, NETMAP_REG_LOCK,0);if(!NETMAP_DELETING(na))break; na->nm_lock(ifp, NETMAP_REG_UNLOCK,0); tsleep(na,0,"NIOCREGIF", hz/10); }if(i ==0) { D("too many NIOCREGIF attempts, give up"); error = EINVAL; free(priv, M_DEVBUF); nm_if_rele(ifp);/* return the refcount */break; }/* 保存设备net_device指针*/priv->np_ifp = ifp;/* store the reference *//* 设置感兴趣的ring,即准备哪些ring来与用户态交互 */error = netmap_set_ringid(priv, nmr->nr_ringid);if(error) goto error;/* 每一个netmap的描述符,对应每一个网卡,都有一个struct netmap_if, 即priv->np_nifp. */priv->np_nifp = nifp = netmap_if_new(nmr->nr_name, na);if(nifp == NULL) {/* allocation failed */error = ENOMEM; }elseif(ifp->if_capenable & IFCAP_NETMAP) {/* was already set *//* 网卡对应的netmap_device的扩展已经设置过了 */}else{/* Otherwise set the card in netmap mode * and make it use the shared buffers. *//* 这时,这块网卡真正要进入netmap模式,开始初始化一些成员变量 */for(i =0; i < na->num_tx_rings +1; i++) mtx_init(&na->tx_rings[i].q_lock,"nm_txq_lock", MTX_NETWORK_LOCK, MTX_DEF);for(i =0; i < na->num_rx_rings +1; i++) { mtx_init(&na->rx_rings[i].q_lock,"nm_rxq_lock", MTX_NETWORK_LOCK, MTX_DEF); }/* 设置网卡为netmap mode为打开模式 对于e1000驱动来说,nm_register即e1000_netmap_reg */error = na->nm_register(ifp,1);/* mode on */if(error) netmap_dtor_locked(priv); }if(error) {/* reg. failed, release priv and ref */error: na->nm_lock(ifp, NETMAP_REG_UNLOCK,0); nm_if_rele(ifp);/* return the refcount */bzero(priv, sizeof(*priv)); free(priv, M_DEVBUF);break; } na->nm_lock(ifp, NETMAP_REG_UNLOCK,0);/* Linux平台,将priv保存到file->private_data*/error = devfs_set_cdevpriv(priv, netmap_dtor);if(error !=0) {/* could not assign the private storage for the * thread, call the destructor explicitly. */netmap_dtor(priv);break; }/* return the offset of the netmap_if object */nmr->nr_rx_rings = na->num_rx_rings; nmr->nr_tx_rings = na->num_tx_rings; nmr->nr_rx_slots = na->num_rx_desc; nmr->nr_tx_slots = na->num_tx_desc; nmr->nr_memsize = nm_mem->nm_totalsize;/* 得到nifp在内存池中的偏移。 因为netmap的基础就是利用内核与用户空间的内存共享。但是众所周知,内核和用户空间的地址范围是不用的。 这样同样的物理内存,在内核态和用户态地址肯定不同。所以必须利用偏移来对应相同的内存。 */nmr->nr_offset = netmap_if_offset(nifp);break;netmap_ioctl

分析完了NIOCGINFO和NIOCREGIF两个,剩下的比较简单了。接下来是netmap_ioctl调用的函数

NIOCUNREGIFcaseNIOCUNREGIF:if(priv ==NULL) {/* 没有priv肯定是不对的,肯定是没有调用过NIOCREGIF */error = ENXIO;break; }/* the interface is unregistered inside the destructor of the private data. *//* 释放priv内存*/devfs_clear_cdevpriv();break;NIOCTXSYNC和NIOCRXSYNC

这两个使用相同的代码。

case NIOCTXSYNC: case NIOCRXSYNC:/* 检查priv,确保之前调用了NIOCREGIF */if(priv== NULL) { error = ENXIO;break; }/* 记得之前分析NIOCREGIF时,priv->np_ifp保存了net_device指针,所有现在可以直接获得这个指针。 要不要担心net_device指针的有效性呢?不用,因为NIOCREGIF时,在得到net_device时,已经增加了计数 */ifp =priv->np_ifp;/* we have a reference */na = NA(ifp);/* retrieve netmap adapter *//* np_qfirst表示需要检查的第一个ring 当其值为NETMAP_SW_RING是一个特殊的值,表示处理host的ring */if(priv->np_qfirst == NETMAP_SW_RING) {/* host rings *//* 对于host ring处理,这个地方的代码有点奇怪。 当cmd是NIOCTXSYNC,是将数据包传给host; 当cmd是NIOCRXSYNC,是将数据包从host发送出去; 感觉好像写反了。我给作者发了邮件,不知道能不能得到回复。 反正从语义上,我是觉得有问题。 现在已经得到了作者的回复——再次感叹外国人的友好。这里的方向,是以netmap的角度去看。 所以,当cmd是txsync时,是netmap把包送出去,那么自然是交给host。反之亦然。 */if(cmd == NIOCTXSYNC) netmap_sync_to_host(na);elsenetmap_sync_from_host(na, NULL, NULL);break; }/* find the last ring to scan *//* 得到需要检查的最后一个ring,如果是NETMAP_HW_RING,那么就是最大ring数值 关于np_qfirst和np_qlast,等看到netmap_set_ringid时,大家就明白了 */lim =priv->np_qlast;if(lim == NETMAP_HW_RING) lim = (cmd == NIOCTXSYNC) ? na->num_tx_rings : na->num_rx_rings;/* 从第一个开始遍历每个ring */for(i =priv->np_qfirst; i < lim; i++) {if(cmd == NIOCTXSYNC) {structnetmap_kring*kring = &na->tx_rings[i];if(netmap_verbose & NM_VERB_TXSYNC) D("pre txsync ring %d cur %d hwcur %d", i, kring->ring->cur, kring->nr_hwcur);/* 执行发送工作,留到后面分析 */na->nm_txsync(ifp, i,1/* do lock */);if(netmap_verbose & NM_VERB_TXSYNC) D("post txsync ring %d cur %d hwcur %d", i, kring->ring->cur, kring->nr_hwcur); }else{/* 执行接收工作,留到后面分析*/na->nm_rxsync(ifp, i,1/* do lock */);/* 在linux平台上,实际上是调用了do_gettimeofday,不知道为什么接收需要的这个时间 看看以后是不是可以知道原因。 */microtime(&na->rx_rings[i].ring->ts); } }

到此,netmap_ioctl分析学习完毕。

netmap_set_ringidstaticint netmap_set_ringid(structnetmap_priv_d*priv, u_int ringid) {structifnet*ifp =priv->np_ifp;structnetmap_adapter*na = NA(ifp);/* 从下面三个宏,可以得知ringid是一个复用的结构。低24位用于表示id值,高位作为标志。 define NETMAP_HW_RING 0x4000/* low bits indicate one hw ring */define NETMAP_SW_RING 0x2000/* process the sw ring */define NETMAP_NO_TX_POLL 0x1000/* no automatic txsync on poll */define NETMAP_RING_MASK 0xfff/* the ring number */*/u_int i = ringid & NETMAP_RING_MASK;/* 根据注释,在初始化阶段,np_qfirst和np_qlast相等,不需要锁保护。 关于这点我没想明白。如果两个线程同时进入怎么办? *//* initially (np_qfirst == np_qlast) we dont want to lock */int need_lock = (priv->np_qfirst !=priv->np_qlast); int lim = na->num_rx_rings;/* 上限取发送和接收队列数量的最大值 */if(na->num_tx_rings > lim) lim = na->num_tx_rings;/* 当处理HW ring时,要对id进行有效性判断 */if( (ringid & NETMAP_HW_RING) && i >= lim) { D("invalid ring id %d", i);return(EINVAL); }if(need_lock) na->nm_lock(ifp, NETMAP_CORE_LOCK,0);priv->np_ringid = ringid;/* 根据三种标志,设置正确的np_qfirst和qlast。从这里也可以看出,只有在初始化时,np_qfirst才可能等于np_qlast。 */if(ringid & NETMAP_SW_RING) {priv->np_qfirst = NETMAP_SW_RING;priv->np_qlast =0; }elseif(ringid & NETMAP_HW_RING) {priv->np_qfirst = i;priv->np_qlast = i +1; }else{priv->np_qfirst =0;priv->np_qlast = NETMAP_HW_RING ; }/* 是否在执行接收数据包的poll时,发送数据包 */priv->np_txpoll = (ringid & NETMAP_NO_TX_POLL) ?0:1;if(need_lock) na->nm_lock(ifp, NETMAP_CORE_UNLOCK,0);if(ringid & NETMAP_SW_RING) D("ringid %s set to SW RING", ifp->if_xname);elseif(ringid & NETMAP_HW_RING) D("ringid %s set to HW RING %d", ifp->if_xname,priv->np_qfirst);elseD("ringid %s set to all %d HW RINGS", ifp->if_xname, lim);return0; }

netmap_ioctl分析完了,根据netmap的示例,下面该分析netmap的mmap的实现了。

定位netmap的mmap

前文提到过netmap会创建一个设备

staticstructmiscdevicenetmap_cdevsw= {/* same name as FreeBSD */MISC_DYNAMIC_MINOR,"netmap", &netmap_fops, };

netmap_fops定义了netmap设备支持的操作

staticstructfile_operationsnetmap_fops= {.mmap = linux_netmap_mmap, LIN_IOCTL_NAME = linux_netmap_ioctl, .poll = linux_netmap_poll, .release = netmap_release, };

OK,现在我们找到了mmap的入口,linuxnetmapmmap。

linux_netmap_mmap分析

现在直接进入linux_netmap_mmap的代码

staticint linux_netmap_mmap(structfile*f,structvm_area_struct*vma) { int lut_skip, i, j; int user_skip =0;structlut_entry*l_entry;conststructnetmap_obj_pool*p[] = { nm_mem->nm_if_pool, nm_mem->nm_ring_pool, nm_mem->nm_buf_pool };/* * vma->vm_start: start of mapping user address space * vma->vm_end: end of the mapping user address space *//* 这里又是一个编程技巧,使用(void)f既不会产生任何真正的代码,又可以消除变量f没有使用的warning。 为什么f不使用,还会出现在参数列表中呢?没办法啊,只是Linux框架决定的。linux_netmap_mmap只是一个注册回调,自然要遵从linux的框架了。 */(void)f;/* UNUSED */// XXX security checksfor(i =0; i <3; i++) {/* loop through obj_pools *//* * In each pool memory is allocated in clusters * of size _clustsize , each containing clustentries * entries. For each object k we already store the * vtophys malling in lut[k] so we use that, scanning * the lut[] array in steps of clustentries, * and we map each cluster (not individual pages, * it would be overkill). *//* 上面的注释说的很明白。 每个pool里的object都是由_clustsize组成的,每一个都包含clustertries个基础内存块。 一个pool公有_numclusters个基础内存块。 所以,在进行内存映射的时候,user_skip表示已经映射的内存大小,vma->start+user_skip也就是当前未映射内存的起始地址,lut_skip表示当前待映射的物理内存池的块索引 */for(lut_skip =0, j =0; j < p[i]->_numclusters; j++) { l_entry = &p[i]->lut[lut_skip];if(remap_pfn_range(vma, vma->vm_start + user_skip, l_entry->paddr >> PAGE_SHIFT, p[i]->_clustsize, vma->vm_page_prot))return-EAGAIN;// XXX check return valuelut_skip += p[i]->clustentries; user_skip += p[i]->_clustsize; } }/* 循环执行完毕后,netmap在内核中的3个对象池已经完全映射到用户空间 真正执行映射的函数是remap_pfn_range,这是内核函数,用于将内核空间映射到用户空间 这个函数超出了本文的主题范围了,我们只需要知道它是做什么的就行了。 */return0; }用户态得到对应网卡的netmap结构

在将netmap内核态的内存映射到用户空间以后,netmap的示例通过offset来得到对应网卡的netmap结构。

fd = open("/dev/netmap",0);strcpy(req.nr_name,"ix0");// register the interfaceioctl(fd, NIOCREG, &req);// offset of the structuremem = mmap(NULL, req.nr_memsize, PROT_READ|PROT_WRITE,0, fd,0); nifp = NETMAP_IF(mem, req.nr_offset);

在此例中,使用ioctl,得到req.nroffset是ix0网卡的netmap结构的偏移——准确的说是netmap管理网卡结构内存池的偏移。mmap后,mem是netmap内存的映射,而网卡结构内存是内存中的第一项,那么mem同样可以视为netmap管理网卡结构的内存池的起始地址。因此,利用前面的req.nroffset,就得到了ix0的netmap结构,即struct netmap_if。

走读netmap的示例中工作代码

按照netmap示例,马上就要进入netmap真正工作的代码了。

for(;;) {structpollfdx[1];/* 根据netmap的代码,NETMAP_RXRING的定义如下 define NETMAP_RXRING(nifp, index) \ ((struct netmap_ring *)((char *)(nifp) + \ (nifp)->ring_ofs[index + (nifp)->ni_tx_rings + 1] ) ) 得到该网卡的接收ring buffer。 吐个槽,为什么英文接收Receive要缩写为RX呢。。。我在别的地方也见过。 */structnetmap_ring*ring = NETMAP_RX_RING(nifp,0); x[0].fd = fd; x[0].events = POLLIN;/* 超时1秒等接收事件发生 */poll(x,1,1000);/* 收到ring->avail个包 */for( ; ring->avail >0; ring->avail--) {/* 得到当前包索引 */i = ring->cur;/* 得到对应的数据包 */buf = NETMAP_BUF(ring, i);/* 用户态处理该数据包 */use_data(buf, ring->slot[i].len);/* 移到下一个待处理数据包 */ring->cur = NETMAP_NEXT(ring, i); } }
